  • Alloys series 1000-2000-3000-5000-6000-7000
    Historical correspondence between international standards:
  • Flat Bars – Round - Square - Hexagonal – Profiles L – T – U
    Alloys:
    Series 1000-2000-6000-7000
    Norm:
    UNI EN 573 - UNI EN 754 - UNI EN 755
    Available dimension:
    • A complete assortment of Aluminium flat bars for electromechanical industry is at your disposal with alloys 1050 and 6060 T4 (sharp – light radius – fully rounded edges)

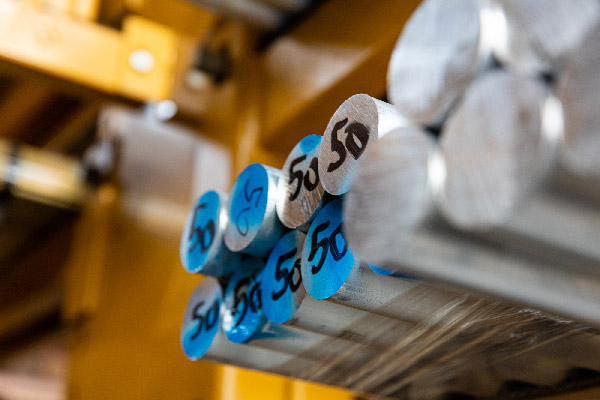

    • Round drawn / extruded 6082 (ANTICORODAL) diameter 6 - 660 mm
    • Round and square bars 2011 (11s), 2030, 2024 (AVIONAL)

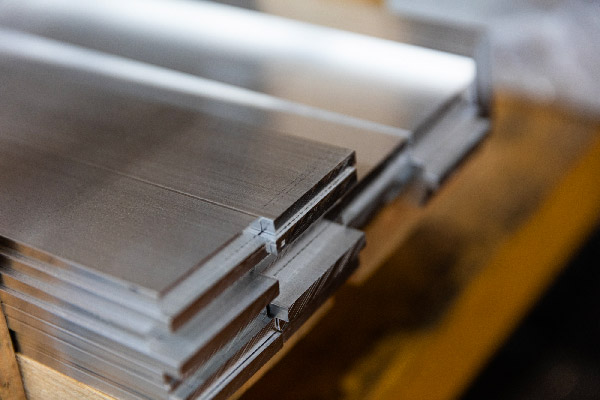

    • Flat bars and profiles 6060, 6082, 6101, 6061
    • Round bars diam. from 8 mm in 7075 (ERGAL)
    • Profiles “L” - “T” - “U”
      • L : Side 15-150 mm – Thickness 2- 10 mm
      • T : Height 20- 60 mm - Thickness 2- 6 mm
      • U : Base 10-130 mm - Thickness 1,5-5 mm
    Check the complete assortment for electromechanical industry
    Additional service:
    • Dics cut to size up to 500 mm. Tolerances: -0+1 diameter 400 / -0+5 diameter > 400 mm
    • Special productions (fixed lengths - special alloys – customized dimensions)
  • Round tubes (up to 330 mm) – square – rectangular tubes
    Alloys:
    Series 5000–6000-7000
    Norm:
    UNI EN 573 - UNI EN 754 - UNI EN 755
    Available dimension:
    • Drawn tubes with diameter up to 40 mm

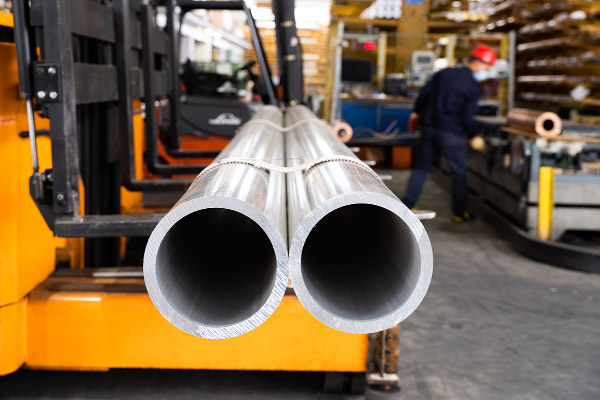

    • Extruded tubes with diameter up to 400 mm
    • Extruded tubes with rectangular/square section up to 200 mm
    Additional service:
    • Cut to size
    • Special productions (fixed lengths; special alloys – customized dimensions)
  • Sheets, strips and plates from 0,50 mm up to 500 mm
    Alloys:
    Series 1000–2000-3000–5000–6000-7000
    Norm:
    UNI EN 573 – UNI EN 485
    Available dimension:
    • Foils: thickness 0,3- 3 mm
    • Sheets: thickness 3,5- 15 mm
    • Plates: thickness 16- 500 mm
    • Commercial standards 1000x2000 / 1250x2500 / 1500x3000 / 2000x4000 / 2000x6000 mm
    • Alloys 1050 - 2017 – 2024 – 2219 – 5005 – 5052 – 5754 – 5083 – 6061 – 6082 – 7010 – 7050 - 7075
    • Sheets 5005 anodized and proctected
    • Thread sheets
    • Strips for industrial applications and with rounded edges for transformer windings
    Additional service:
    • Cut to size, with shears, band saw and disc
    • Discs and rings
    • Special productions (special alloys – customized dimensions)
